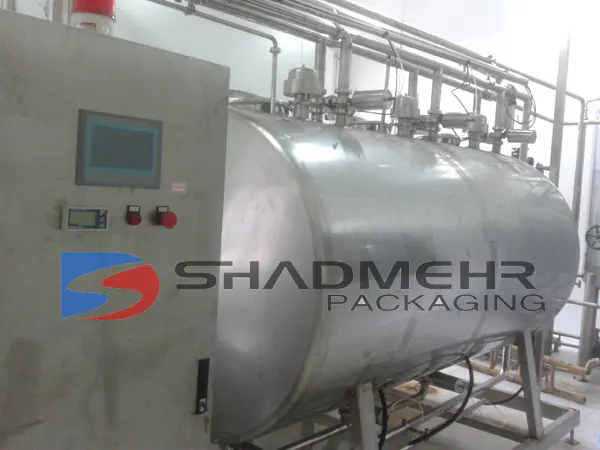

CIP Cleaning System
Automatic clean-in-place for tanks, pipework and fillers.
- Category
- Beverage Preparation
- Built for
- Your bottle & cap samples
Overview
CIP system function is to do automatic cleaning to surface contacting with product. The cleaning area includes inside surface of the tank, pipe, liquid carousel and other liquid channels.
Usually, CIP system is composed of cleaning agent storage tank, acid and caustic dosing device, heating device, feed pump, recycle pump, pipes, and steam valves, etc.
The critical technical parameters of CIP system: cleaning media, concentration, temperature and flowrate. The caustic usually adopts NaOH, acid usually adopts nitric acid or phosphoric acid. The concentration is 1-3%. Heated properly and the cleaning flowrate is 1.5-3m/s.
The automatic CIP system adopts automatic control to concentrated acid and caustic dosing and cleaning agent temperature. The cleaning procedure is executed automatically after set.
Complete the line

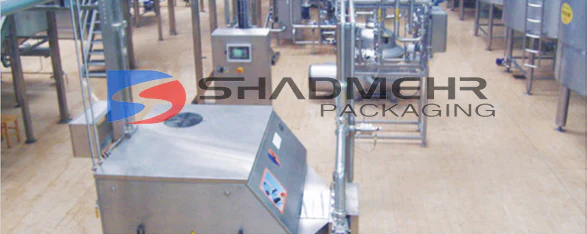

Homogenizing & Deaeration System
Uniform texture and oxygen removal before filling

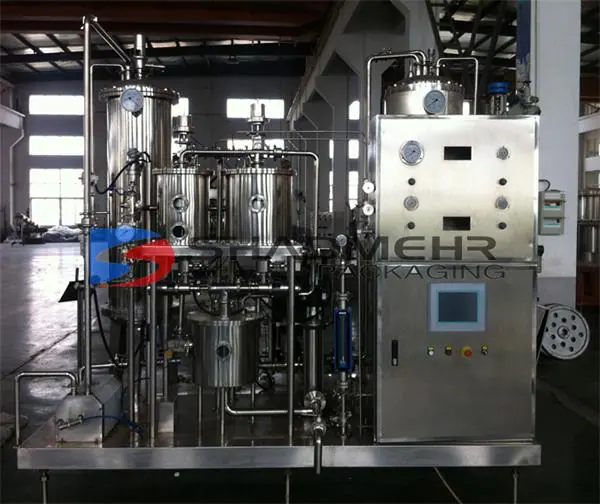

Carbonation Mixer
Stable CO₂ content for carbonated soft drinks

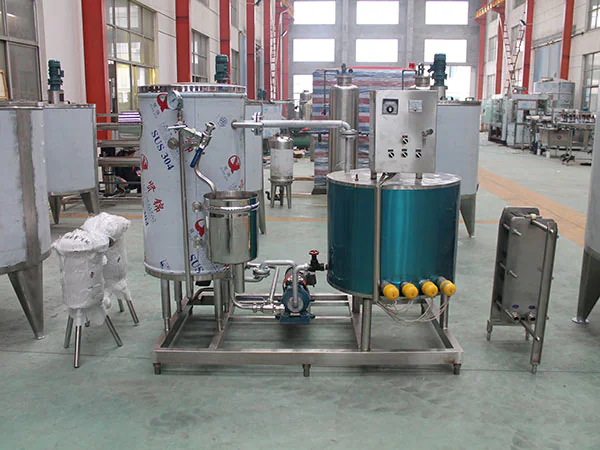

UHT / HTST Sterilizer
Plate and tubular heat treatment for juice, tea and dairy

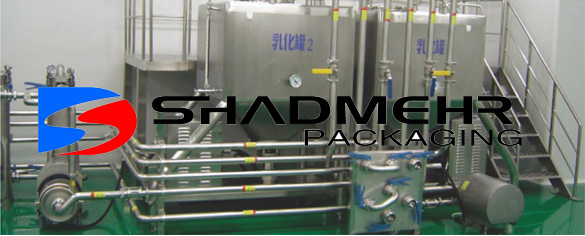

Sugar Dissolving System
Hot and cold sugar dissolving with filtration
Get a quotation for the CIP Cleaning System
Share your product, container and target output. We reply with a process proposal, equipment list and layout — usually within one working day.
