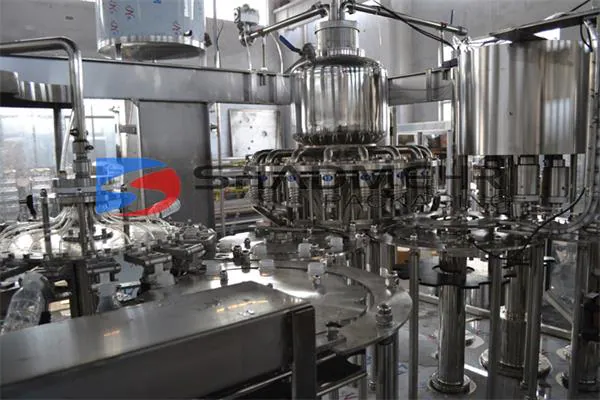

Hot Filling Machine
Hot-fill monobloc for juice and tea in heat-resistant PET.
- Products
- Juice, tea beverage, energy drink,etc.
- Containers
- PET bottles with different volumes and shapes
- Filling system
- Pressure filling
- Capacity
- 1500BPH-20000BPH
SUS304 product-contact partsFactory acceptance test12-month guarantee
Overview
Standard type of RCGF series hot filling machine is “3-in-1”. Aiming at special production condition, one disinfectant rinser can be increased to be 4-in-1 monobloc. The system gives full consideration for beverage’s characteristics( e.g. it is easy to have foaming for tea beverage and mixed juice.) and main technical requirement of hot filling.
Technical features
- Full filling avoids the bottle distorted after cooling and reduces dissolved oxygen at the maximum degree.
- Product storage hopper and feed system adopts reasonable product feed design( constant flow, constant pressure, no foaming). Usually, the high-level tank is used for feeding product.

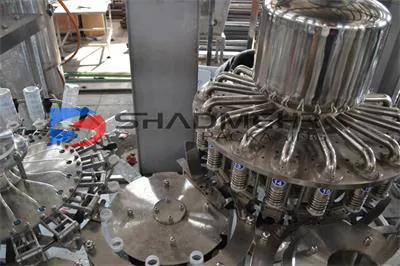

- Product hopper with reasonable structure( exhaust, fully close, temperature can be detected). Medium and high speed line adopts product distributor instead of large liquid carousel, which can be cleaned completely by pressure cleaning with CIP.

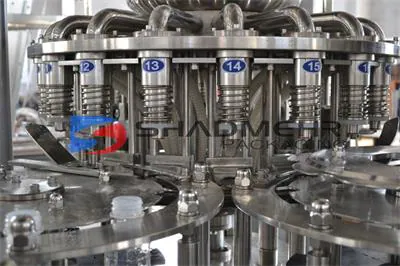

- Sanitary filling valve system with umbrella-flow type structure, high speed.
- Perfect hot filling temperature control system.
- Product recycle tank system with automatic product feed startup.
- Perfect CIP system.
Used in these turnkey lines
1,000–1,500 BPH Automatic Juice LineAutomatic juice line with water treatment, blending, hot filling and packing.
4,000 BPH Juice Filling LineHot-fill juice line for 500 ml bottles with full process and packing systems.
6,000–7,000 BPH Juice LineHigh-speed juice and tea line with integrated filling and packing.
Related equipment
Complete the line

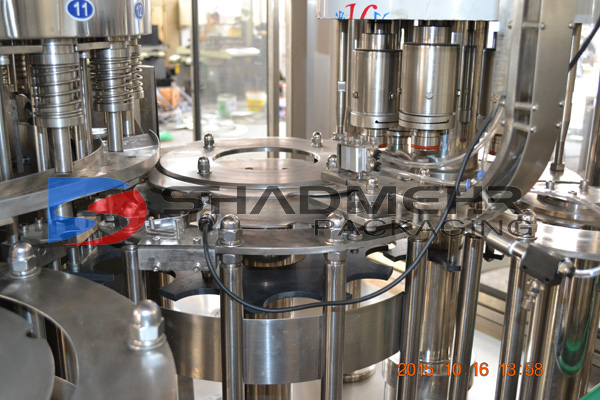

Edible Oil Filling Machine
Weighing or volumetric filling for cooking oil
View machine

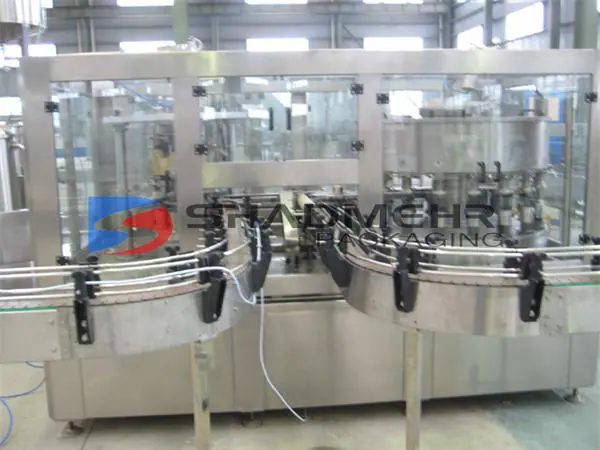

Can Filling & Seaming Machine
Filling and seaming for aluminium beverage cans
View machine
PET Bottle Beer Filler
Low-foam isobaric filling of beer in PET bottles
View machine

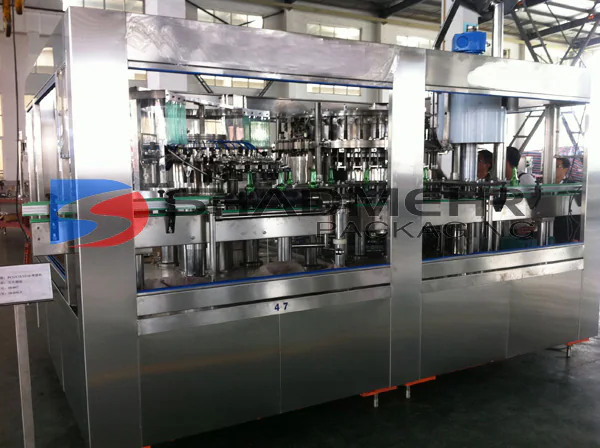

Glass Bottle Beer Filler
