6000BPH carbonated drink line

CONTACT OUR EXPERTS

Water treat system

The brand is CNP, it is the most famous Chinese brand pump. The quality is best one in China. And the pump material is SUS 304. And the capacity can reach the water treat system
Summary
This machine is made of stainless steel as a small tank which contains sand filter, it only allows un-treated water go through the sand filter, and do not allow any liquid go through another part, so it can filter the un-treated water. It also can be used in petroleum industry, pharmacy industry, wine making industry, beverage industry and higher quality water industry.
Main technical parameter
(1). Model: SYS-8
(2). working pressure: ≤0.3Mpa
(3). Flux: 8T/h
(4). quantity of filter material: Silica sand
Structure and characteristic
This sand filter device is equipped with filter, filter’s cap, and filter device parts, through tight the screw to pressurize, it can forms clean and dirty parts separately, you have to take care of the airproof on sealing part as you are installing the equipment.
Summary
This machine is designed and made after absorbing the advices from clients and customers, which has changed the directions of water-taking in and sewerage-taking out to be more efficient on water purifying. It has been welcome by the clients worldwide. This equipment is the last one for living water treatment. The water with chaotic degree maximum 5mg/L will be clear, transparent, innocuous, drinkable, axenic, sugary and according with the national standard for drinking water testing
This equipment can wipe off the peculiar smell, strange color and some heavy metal like hg, pb, cadmium, zinc, Fe, Mn, chrome, etc. contained in the water. It can also get rid of arsenic, hydride, redundant chlorine and other macromolecule compound and radioactivity substances as Sr and Ra. Bacteria, coliform and other carcinogen existed in the water will also be killed and wiped off. It is the ideal water supply equipment in various fields including living drinking, foodstuff making, pharmacy and chemistry.
This water purifier is simple and reliable, easy to maintain. It is suitable for the places which are strict with water quality like enterprises, hotel, army, station and dock. All in all, it is a really good water supply device for both industry and living.
Main technical parameter
(1) Model: HYT-8
(2) Working capacity: 8T/H
(3) Filtering volume: 8T
(4) Working pressure: 0.25MPa
(5) Chaotic degree: maximum 5mg/L
(6) Water quality after treatment: need to be accorded with GB5749-85 national standard for living drinking water
(7)Filter medium: active carbon
Soften:
(1)Soften theory: Exchanging Na++ of resin itself instead of Ca++Mg++ of water resource with
Ion to make water resource soften and become soft water.
(2)The water resource which comes in the barrel exchanging resin and exchanging react with
The ion in the barrel, Ion exchanging Na++ of the resin instead of Ca++Ma++ water resource to decrease the Ca++Ma++ of the water, the water quality becomes soft water from hard water.
Regeneration:
(1) Regeneration theory: Using Na+ of salt solution permutate Ca++Mg++ of invalidity resin
To make resin restore soften ability.
(2)Regeneration preparation: After 24—25KG salt dissolve completely in I dissolved tank
And put it totally into II tank, and then dilute to thickess is 5% salt solution with water. Then
dilute thickness is 10% salt solution with 24—25KG salt in I tank.

Disposal water volume: 1ton/hour—-8ton/hour

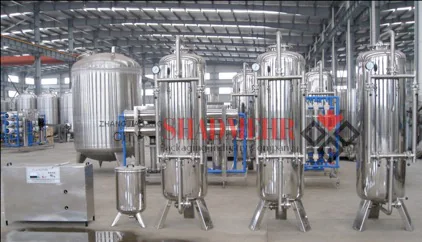

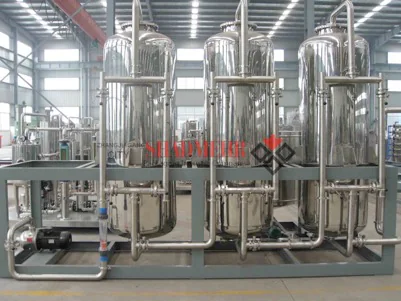

Input water hardness: <4miligram/liter Output water hardness: <0.035miligram/liter Working pressure: 3kilogram/cm2 Testing pressure: 4.5kilogram/cm2 Working periods:48----50hours Ion-exchanging agent: 732resin(or sulfurted coal) Soft water periods production capacity: 96ton/periods-----100ton/periods The following picture from left to right, they are: pump, sand filter, active carbon filter, Sodium ion exchanger
The following picture, from right to left, they are sand filter, active carbon filter, Sodium ion exchanger

Summary
This machine is made of stainless steel as a small tank which contains precision filter membrane, it only allows un-treated water go through the membrane, and does not allow any liquid go through another part, so it can filter the un-treated water. It also can be used in petroleum industry, pharmacy industry, wine making industry, beverage industry and higher quality water industry.
Main technical parameter
(1). Model: JM-8
(2). working pressure: ≤0.3Mpa
(3). Flux: 8T/h
(4). Filter medium: PP ,10micron
(5) Material: stainless steel 304
Structure and characteristic
This Precision filter is an advanced settled deep filter widely used with foldaway polypropylene. It is totally made from pure polypropylene for it’s structure. The medium of filtering core adopts hot-melting fiber membrane made from polypropylene. This product has comprehensive chemic adaptability without using surface active type felting solvent. The scale of precision filtering is from 0.10mm to 60mm. The precision of the membrane won’t be affected by the pressure caused by the taking-in water.

Summary:
The device’s key part: the reverse osmosis membranes is from the America HYDRANAUTICS company, it has a good performance to eliminate salts and the high pressure pump is from a high quality pump producer in China, it’s easy to handle for its simple structure. The source water, in the case that the conductivity is less than 300us/CM, can reach the national standards totally after treatment by this device, it’s the most ideal equipment for water treatment.
Main technical parameter:
Model: RO-1
Production Capacity: 4CBM/h Working Pressure: 1.5Mpa
Summary
This equipment are body device of closed cases. Owned tube in common and disinfected , electric apparatus was controlled, three major parts of case body were assembled .
Disinfect tube adopts high-quality stainless steel make , the material mere to with high efficiency to can get rusty reflection have to ultraviolet ray, will not produce pollution while using , accord with the hygienic requirements of food industry. Tube built-in ultraviolet lamp and quartz glass tube, disinfect tube for airtight container that pigeonhole while bearing while being whole of, barrel have enter water mouth and water outlet, it is stainless steel that is it connect both ends is it seal one and is it stamp flange to pigeonhole to have to in charge of.
Material: stainless steel 304
Capacity:2T

Carbonated drink blending system

The body of syrup boiler adopts high quality stainless steel, stirrer and blow down valve included, motor and reducing device on the top, stainless steel net at the bottom. The advantages of this machine are as below: good design, convenient operation, safe and clean, low floor space, good boil effect and so on
Material: SUS 304, capacity: 0.3T/H
This machine is made of stainless steel, and is composed by two round cylinder; it is shining on inner- outer. There is an air-sorting valve on the top of cylinder; it is easy to remove the air as you are operating the machine. All pipe connector are well welded, it is pass the test for 0.3Mpa in water area. Three-ways screws can swiftly open and close, this machine is concisely structure, easy to operate and maintain.
The thin stainless steel board is rolled to become into this equipment, the speed reducer motor bring along the board to run and mix the liquid within the mixing tank.

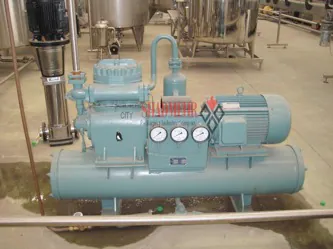

Cold beverage tank is adopted chiller to work out the old water. It can be used in manufacture, hotel, and so on; it is accessory devices for making soda water, sparkling wine.
This cold beverage tank is adopted F. chilling liquid is F-12; it is safe to use, and installed pressure automatic controller, machine runs well and easy to operate.
Cold water tank:

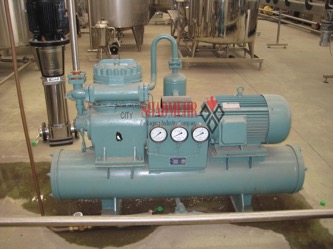

Chiller which set use

Usage and Characteristic

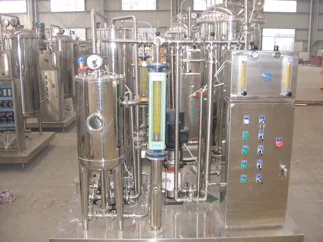

QHS – 3000 beverage mixing machine is used for producing all carbonated beverages (water, syrup, and CO2 mixing), for example lemon, coca cola, fruit’s juice and so on. It is the main equipment in whole beverage production line. (Especially for middle and higher standard beverage production).
Characteristic:
(1). This machine is adopted advanced technical from chemical field. – Static Mixing device (also named carbonization device), it has several advantages such as big acreage for air liquid transmission, low wasting for resistance, higher productivity, low wasting for energy resource, and concise structure, it also is adopted multi-grade centrifugal pump, which has favorable performance and low yawp. It ensures well performance for the whole equipment.
(2). Mixing proportion is not only precise, but also is easy to adjust. This machine can conveniently adjust the products’ qualities and proportion of syrup and water without changing any parts of the machine.
(3). This machine is adopted CO2 to circularly doff oxygen, it not only economize CO2, but also reach the purpose of removing oxygen.
(4). This machine can conveniently adjust volume of carbonation in terms of the requirement of beverage’s carbonation. It can be done through suitable operation and adjustment to complete the procedure.
(5). This machine has full automatic controlling system; it has advantage on concise structure, harmonious working action, continuous producing, and higher automatic performance.
(6). This machine has cleaning procedure in original position, favorable structure, it can conveniently sterilize with pointed chemical, hot sterilization and rinsing with sanitized water to meet the rules’ requirement of food’s sanitation.
Main Technical Parameter
(1). Capacity 3000kg/h
(2). Range of proportion on syrup and water 1:3 – 1:10
(3). Volume of Carbonation (CO2: H2O in volume) 〉2: 5
(4). Mixing precise error ≤2%
(5). Cooling water temperature in entry mouth 0-4℃
(6). Cooling water pressure in entry mouth 0.01-0.08Mpa
(7). Syrup temperature in entry mouth 2-8℃
(8). Syrup pressure in entry mouth 0.01-0.08Mpa
(9). CO2 pressure in entry mouth 0.7-0.8Mpa
(10). CO2 pure % >99.9%
(11). Pressure for CO2 tank and syrup tank 0.05-0.09Mpa
(12). Working pressure of tank 0.2-0.5Mpa
Product’s Structure and Working Procedure
(1). CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)
(2). Main working Procedure
a. Cooling water→multi-grade pump→oxygenating CO2→volume control
b. Cooling syrup→multi-grade pump→syrup tank→volume control
(a and b → multi-grade pump→static mixing device→
c. CO2 air resource→filter and pressure reducing→ → tank→filling machine

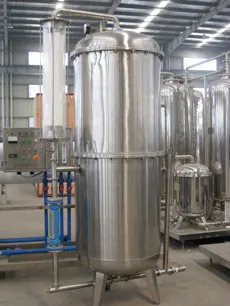

The machine is made of high quality stainless steel, stainless steel part, stainless steel filtering board, sterilizing film, static matter and so on. It also includes air meter, pressure meter, valve and so on, this machine has advantages on well design, new model fashion, structured simpleness, and safe and hygienic.
